Introduction
This guide explains the basics of running simulations and plotting the results.
See the subsequent guides for more in-depth guides to the various options available.
Setting up and running simulations
The Parameters class is used to define all aspects of the simulation to be run.
This includes - the algorithm used - the timing of the simulation, including - how long it runs for - how fast the cells divide - how frequently to record the simulation state) - the cell population, including - total cell population size - initial clone populations - initial grid layout (if running a 2D simulation) - the cell fitness, including - the fitness of the initial clones - the fitness (or fitness distribution) of any mutations that will appear during the simulation - how to combine the fitness of multiple mutations in the same cell - and many more options
# Import the Parameters class. This is used to set up all simulations
# Subsequent guides will go into more detail on the other parameter classes
from clone_competition_simulation import Parameters, PopulationParameters, TimeParameters, FitnessParameters
p = Parameters(
algorithm='Moran', # We will run a non-spatial Moran simulation.
times=TimeParameters(
max_time=25, # Run for 25 time units
division_rate=1.4 # Set average division rate for all cells to 1.7 per time unit
),
population=PopulationParameters( # Define the cell population
initial_size_array=[100, 100, 100] # There are three initial clones, with 100 cells in each
),
fitness=FitnessParameters( # Define the cell fitness
fitness_array=[1, 1.02, 1.04] # Each clone has a different fitness value
)
)
Now that the parameters for the simulations have been defined, we can create and run the simulations themselves
sim = p.get_simulator()
sim.run_sim()
If we want to run another simuation with the same parameters but a different random sequence, we can get another simulation from the parameters object
sim2 = p.get_simulator()
sim2.run_sim()
The results are not identical to the first simulation because the random sequences are different. E.g. the population arrays (which contain all of the clone sizes) are not the same
import numpy as np
print(np.all(sim.population_array.toarray() == sim2.population_array.toarray()))
False
For reproducibility, you can set the numpy random seed before running the simulation
sim3 = p.get_simulator()
np.random.seed(0)
sim3.run_sim()
sim4 = p.get_simulator()
np.random.seed(0)
sim4.run_sim()
Here the population arrays are equal
print(np.all(sim3.population_array.toarray() == sim4.population_array.toarray()))
True
Viewing simulation results
The simulation has now been run, and we can look at some of the simulation results. This is just a few quick examples.
The particular functions appropriate for extracting and plotting the results will depend on the setup of the simulations, in particular whether new mutations occur during the simulations or whether they all mutations/clones in the simulation exist from the start.
See the other tutorials for further details.
You can see some information on the clones in the simulation. This function returns a more readable version of the sim.clones_array which stores this information
print(sim2.view_clone_info())
| clone id | label | fitness | generation born | parent clone id | last gene mutated | |
|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 1.00 | 0 | -1 | None |
| 1 | 1 | 0 | 1.02 | 0 | -1 | None |
| 2 | 2 | 0 | 1.04 | 0 | -1 | None |

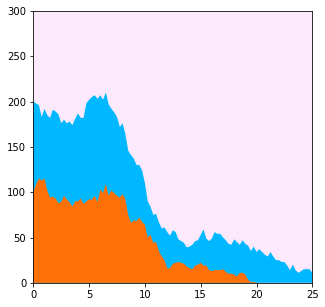

The Muller plot shows the sizes of each clone over time.
import matplotlib.pyplot as plt
sim.muller_plot(figsize=(5, 5))
plt.show()
The population array stores the clone sizes.
Each row is a unique clone. If new mutations occur, they start on a new row.
It is a scipy.sparse array, so use .toarray() to convert to a numpy array
print(sim.population_array.toarray())
array([[100., 109., 115., 113., 115., 102., 94., 95., 93., 88., 89.,
96., 92., 89., 84., 90., 90., 93., 87., 90., 92., 92.,
96., 89., 103., 99., 109., 96., 102., 99., 96., 94., 98.,
92., 75., 66., 69., 68., 72., 67., 64., 50., 53., 44.,
45., 35., 29., 25., 16., 16., 21., 22., 23., 22., 21.,
18., 16., 15., 19., 20., 22., 19., 19., 14., 13., 14.,
14., 14., 15., 12., 10., 10., 9., 7., 11., 11., 9.,
3., 1., 1., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0.],
[100., 89., 81., 70., 77., 83., 88., 96., 96., 98., 87.,
84., 84., 89., 90., 91., 97., 89., 95., 108., 110., 113.,
111., 114., 104., 103., 101., 101., 90., 89., 87., 78., 78.,
72., 71., 75., 68., 62., 58., 57., 46., 40., 31., 31.,
31., 32., 31., 36., 40., 36., 37., 34., 25., 24., 23.,
21., 24., 27., 27., 27., 31., 40., 30., 32., 36., 42.,
40., 40., 35., 35., 33., 32., 39., 38., 31., 36., 34.,
38., 34., 39., 34., 37., 34., 31., 29., 34., 29., 25.,
25., 23., 23., 19., 14., 20., 14., 11., 13., 15., 15.,
15., 11.],
[100., 102., 104., 117., 108., 115., 118., 109., 111., 114., 124.,
120., 124., 122., 126., 119., 113., 118., 118., 102., 98., 95.,
93., 97., 93., 98., 90., 103., 108., 112., 117., 128., 124.,
136., 154., 159., 163., 170., 170., 176., 190., 210., 216., 225.,
224., 233., 240., 239., 244., 248., 242., 244., 252., 254., 256.,
261., 260., 258., 254., 253., 247., 241., 251., 254., 251., 244.,
246., 246., 250., 253., 257., 258., 252., 255., 258., 253., 257.,
259., 265., 260., 266., 263., 266., 269., 271., 266., 271., 275.,
275., 277., 277., 281., 286., 280., 286., 289., 287., 285., 285.,
285., 289.]])
The times in the simulation (which correspond to the columns in sim.population_array) can be accessed
print(sim.times)
array([ 0. , 0.25, 0.5 , 0.75, 1. , 1.25, 1.5 , 1.75, 2. ,
2.25, 2.5 , 2.75, 3. , 3.25, 3.5 , 3.75, 4. , 4.25,
4.5 , 4.75, 5. , 5.25, 5.5 , 5.75, 6. , 6.25, 6.5 ,
6.75, 7. , 7.25, 7.5 , 7.75, 8. , 8.25, 8.5 , 8.75,
9. , 9.25, 9.5 , 9.75, 10. , 10.25, 10.5 , 10.75, 11. ,
11.25, 11.5 , 11.75, 12. , 12.25, 12.5 , 12.75, 13. , 13.25,
13.5 , 13.75, 14. , 14.25, 14.5 , 14.75, 15. , 15.25, 15.5 ,
15.75, 16. , 16.25, 16.5 , 16.75, 17. , 17.25, 17.5 , 17.75,
18. , 18.25, 18.5 , 18.75, 19. , 19.25, 19.5 , 19.75, 20. ,
20.25, 20.5 , 20.75, 21. , 21.25, 21.5 , 21.75, 22. , 22.25,
22.5 , 22.75, 23. , 23.25, 23.5 , 23.75, 24. , 24.25, 24.5 ,
24.75, 25. ])
And various other plotting functions are available. These will be shown in other tutorials.

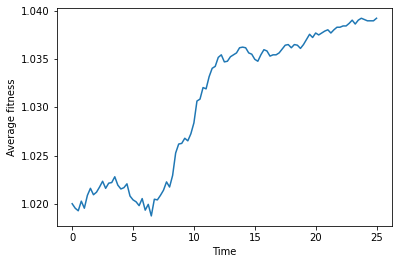

sim.plot_average_fitness_over_time()
plt.show()
