Mutations (Part 2)

The first guide on mutations explains the basics of setting up simulations to include random mutations.

This guide goes through extracting the data from a simulation and a couple of plots that can be helpful.

---

import matplotlib.pyplot as plt
import numpy as np
from clone_competition_simulation import (
    Parameters,
    TimeParameters,
    PopulationParameters,
    FitnessParameters,
    Gene,
    MutationGenerator,
    FixedValue
)


# Setting up a simulation with a few mutations
gene = Gene(name='Gene1', mutation_distribution=FixedValue(2), synonymous_proportion=0)
mut_gen = MutationGenerator(genes=[gene])

np.random.seed(0)
p = Parameters(
    algorithm='Moran',
    times=TimeParameters(max_time=10, division_rate=1),
    population=PopulationParameters(initial_cells=50),
    fitness=FitnessParameters(
        mutation_rates=0.01,
        mutation_generator=mut_gen,
    )
)
s = p.get_simulator()
s.run_sim()
s.muller_plot(figsize=(5, 5))
plt.show()

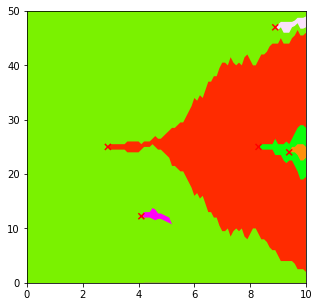

In this simulation, the red clone grows large and develops some subclones (green and orange)

---

You can see in the parent clone id column that clone 3 is a subclone of clone 1 and clone 5 is a subclone of clone 3

print(s.view_clone_info())

Mutant clone sizes

The population array contains the sizes of each set of unique mutations (and labels if used).
Each row corresponds to a clone id in s.clones_array (which is shown in s.view_clone_info())

However, if some clones are subclones of others, this array won't represent the true number of cells containing each mutant, i.e. the mutant clone sizes.

---

This is the population array for the last 10 time points in the simulation.

print(s.population_array.toarray()[:, -10:])

[[ 8.,  8.,  8.,  8.,  8.,  7.,  5.,  5.,  5.,  4.],
 [39., 37., 36., 37., 37., 36., 36., 33., 33., 35.],
 [ 0.,  0.,  0.,  0.,  0.,  0.,  0.,  0.,  0.,  0.],
 [ 2.,  3.,  4.,  3.,  3.,  5.,  6.,  7.,  7.,  7.],
 [ 1.,  2.,  2.,  2.,  1.,  1.,  1.,  2.,  2.,  2.],
 [ 0.,  0.,  0.,  0.,  1.,  1.,  2.,  3.,  3.,  2.]])

At the end of the simulation (last column) there are

• 4 wild type cells (clone 0, green in the muller plot)
• 35 cells in clone_id 1, with no further mutations (red)
• 0 cells left in clone_id 2 (dark pink)
• 7 cells in clone_id 3 (green)
• 2 cells in clone_id 4 (light pink)
• 2 cells in clone_id 5 (orange)

---

However, if we want to know the total cells that contain the mutation that formed clone 1 (red), we need to add the cells in its subclones (clones 3 and 5). This is what the function s.get_mutant_clone_sizes does. It ignores any clones that existed at the start of the simulation, and adds up the total number of cells containing each new mutation.

print(s.get_mutant_clone_sizes())

[44,  0,  9,  2,  2]

This means 44 cells containing the mutant that founded clone_id 1. 35 from clone_id 1 itself, + 7 from clone_id 3, + 2 from clone_id 5

Note that clone_id 3 has 9 cells here, 7 from clone_id 3 itself + 2 from its subclone clone_id 5

---

The function lets you further filter the clone sizes:

• non-zero clones only
• from a particular gene
• non-synonymous/synonymous only
• with a particular label
• at time points other than the end of the simulation.

print(s.get_mutant_clone_sizes(t=9, non_zero_only=True, gene_mutated='Gene1', selection='ns'))

[39,  2,  1]

---

To get a np.bincount version of the of mutant clone sizes run s.get_mutant_clone_size_distribution. This function can also be used with arguments to show only mutants in certain genes, at different time points, and for non-synonymous/synonymous only, or for those with a particular label.

print(s.get_mutant_clone_size_distribution())

array([1, 0, 2, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
       0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
       1])

There is 1 mutant of size 0, 2 clones of size 2, 1 clone of size 9, and one clone of size 44

Clone ancestors/descendants

The clone lineages are stored in a Tree (s.tree).

You can get a list of the clone ancestors:

print(s.get_clone_ancestors(5))

[5, 3, 1, 0, -1]

Here you can see that clone 5 is descended from 3, then 1, then 0 (the original clone in this simulation) and -1 (the root of the tree, this can be ignored)

---

The descendants of clone 1 are 3 and 5

print(s.get_clone_descendants(1))

[1, 3, 5]

Muller plots

These plots can be very messy for simulations with a lot of clones, and can also take a long time to plot.
To reduce the time taken, or to make the plots clearer, you can hide small clones.

gene = Gene(name='Gene1', mutation_distribution=FixedValue(1.5), synonymous_proportion=0.5)
mut_gen = MutationGenerator(genes=[gene])

np.random.seed(0)
p = Parameters(
    algorithm='Moran',
    times=TimeParameters(max_time=10, division_rate=1),
    population=PopulationParameters(initial_cells=10000),
    fitness=FitnessParameters(
        mutation_rates=0.01,
        mutation_generator=mut_gen,
    )
)
s = p.get_simulator()
s.run_sim()
s.muller_plot(figsize=(5, 5))
plt.show()

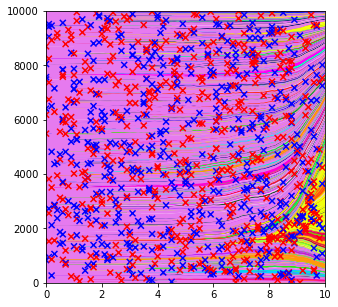

The plot is very busy.

---

The Xs marking the birth of mutant clones can be hidden

s.muller_plot(figsize=(5, 5), show_mutations_with_x=False)
plt.show()

---

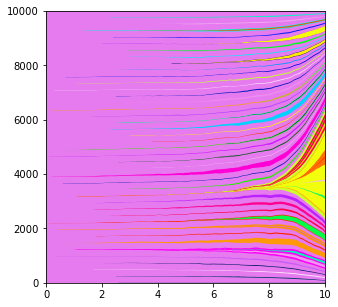

And you can only hide small clones. Here we only show clones which reached a size of at least 30 cells

s.muller_plot(figsize=(5, 5), show_mutations_with_x=False, min_size=30)
plt.show()

Incomplete moments

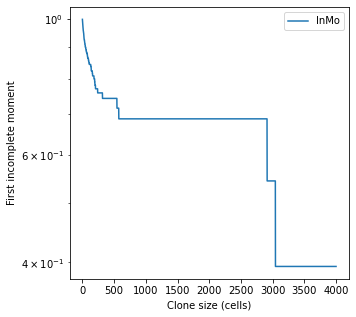

There are plots for showing the incomplete moments of the clone sizes.

fig, ax = plt.subplots(figsize=(5, 5))
s.plot_incomplete_moment(ax=ax)
plt.show()

---

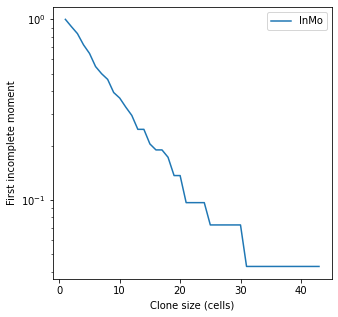

and here for a neutral simulation

gene = Gene(name='Gene1', mutation_distribution=FixedValue(1), synonymous_proportion=0.5)
mut_gen = MutationGenerator(genes=[gene])

np.random.seed(0)
p = Parameters(
    algorithm='Moran',
    times=TimeParameters(max_time=10, division_rate=1),
    population=PopulationParameters(initial_cells=10000),
    fitness=FitnessParameters(
        mutation_rates=0.01,
        mutation_generator=mut_gen,
    )
)
s = p.get_simulator()
s.run_sim()

fig, ax = plt.subplots(figsize=(5, 5))
s.plot_incomplete_moment(ax=ax)
plt.show()
